How to Replace a Granite Post
During the first week of November, many parts of the northeast were blanketed with nearly a foot of wet and heavy snow. Snowfall at such an early date can be very damaging to trees, as so many of them still haves leaves at that time of year. Fortunately, Hurricane Sandy blew most of those leaves off when she passed through in October and the snow caused little, if any, snow damage at the farm. Oddly, what did break were two granite posts that act as uprights for the wire supports in the raspberry patch. You may recall me mentioning that I acquired a whole shipment of antique granite posts from China, which are used for uprights on pergolas and as plant and tree supports in many areas of the farm. Replacing the uprights in the raspberry patch was no small feat and it required a good deal of time and manpower. I thought I'd show you what was involved.

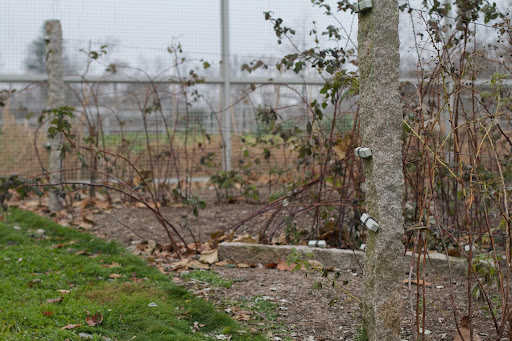

1 The heavy gauge wires that support the raspberry canes are threaded through drilled holes in the granite posts. Wooden toggles anchor the wires on the end posts.

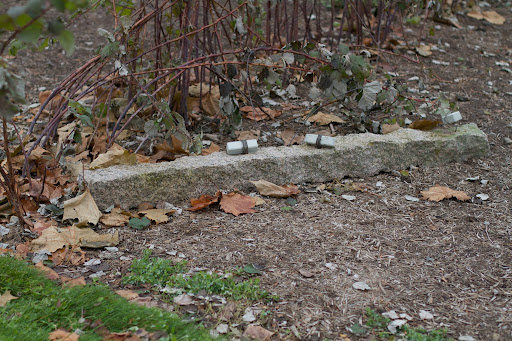

2 It baffles me that granite can break like this, but the snow that fell was very wet and heavy and when it accumulated on the canes, the granite could not withstand its weight.

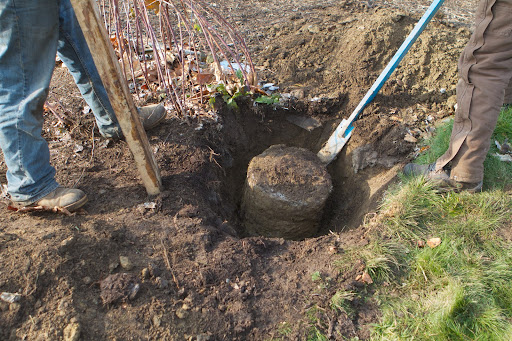

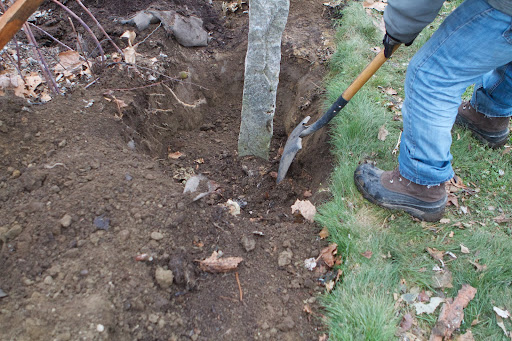

3 Replacing a post is labor intensive. The posts are held upright by cement footings. The footings had to be unearthed and dug out. Each one is the equivalent of one bag of concrete mix.

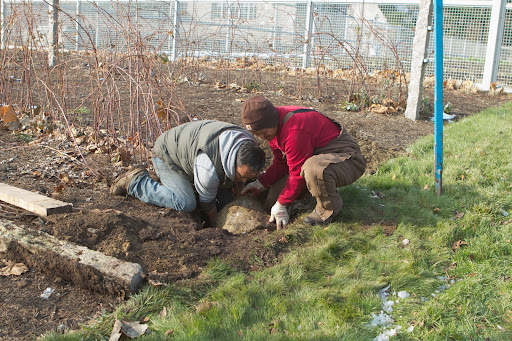

4 Getting the footing out of the hole isn't easy.

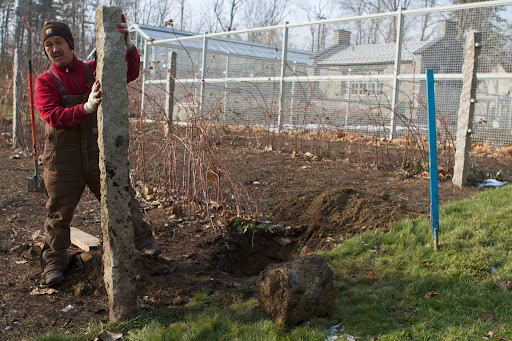

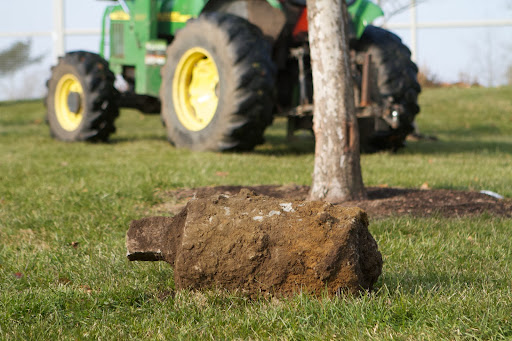

5 Here's a footing with broken-off granite

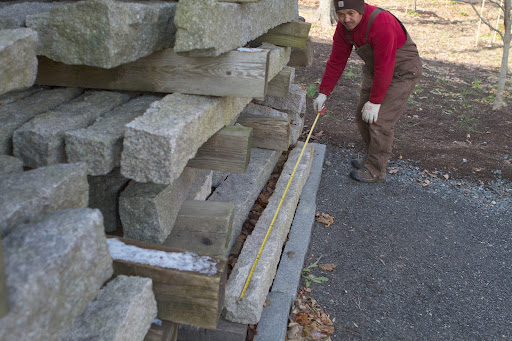

6 Chhiring had to determine how long the replacement posts needed to be, as the granite surplus pile has varying lengths.

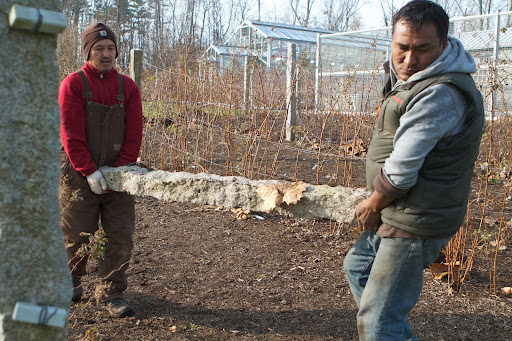

7 He and Pete carried away the broken granite.

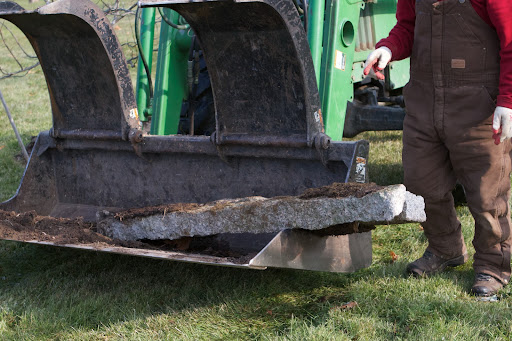

8 The broken posts were loaded onto the tractor and....
9 Returned to the granite pile.

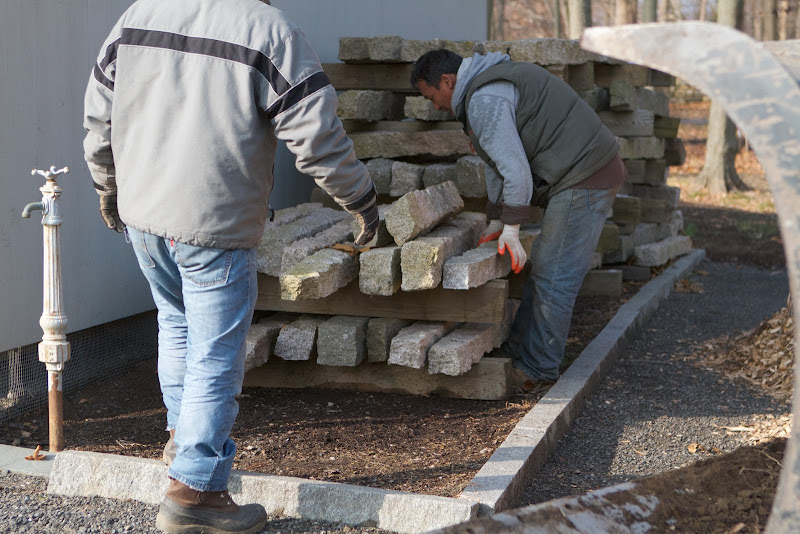

10 Chhiring found the replacements he needed.

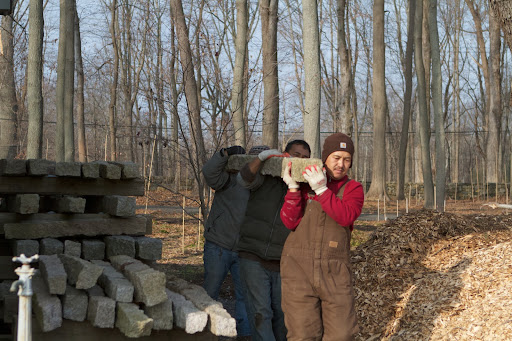

11 Those heavy posts were carried and...

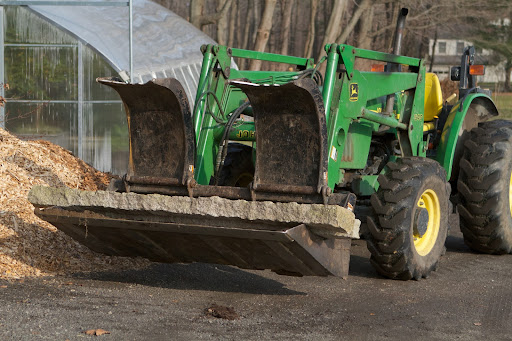

12 Loaded onto the tractor.

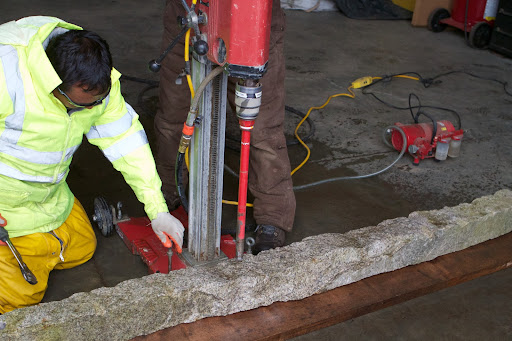

13 The posts were taken to the equipment barn where holes for the wire to pass through were drilled using a core drill.

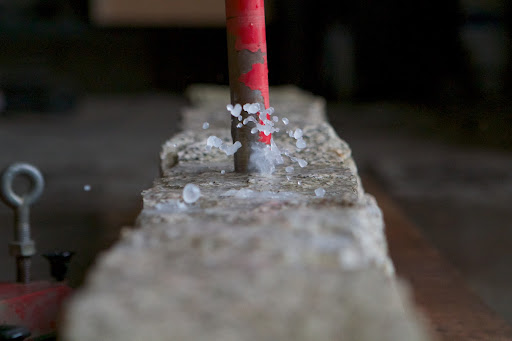

14 Water is used in the drilling process to keep the drill bit cool. Drilling through such dense stone takes time.

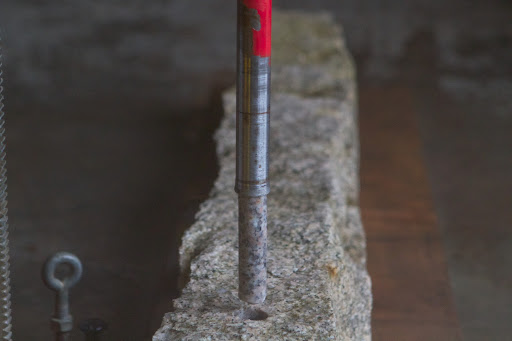

15 When the bit finally worked its way through, the core was removed.

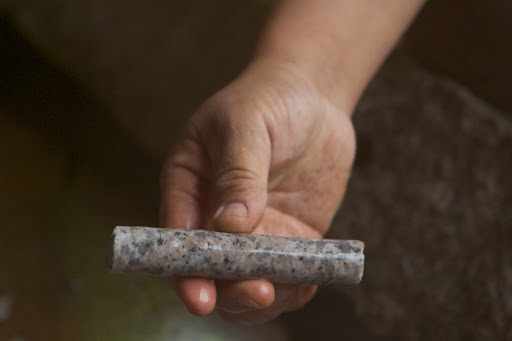

16 The core

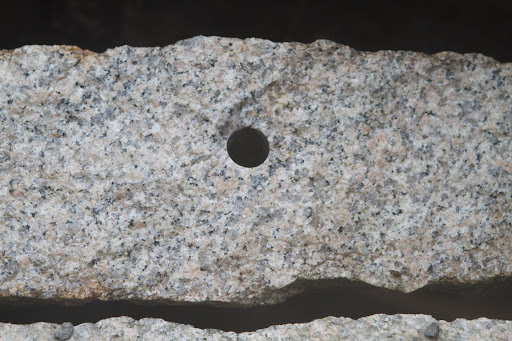

17 The hole

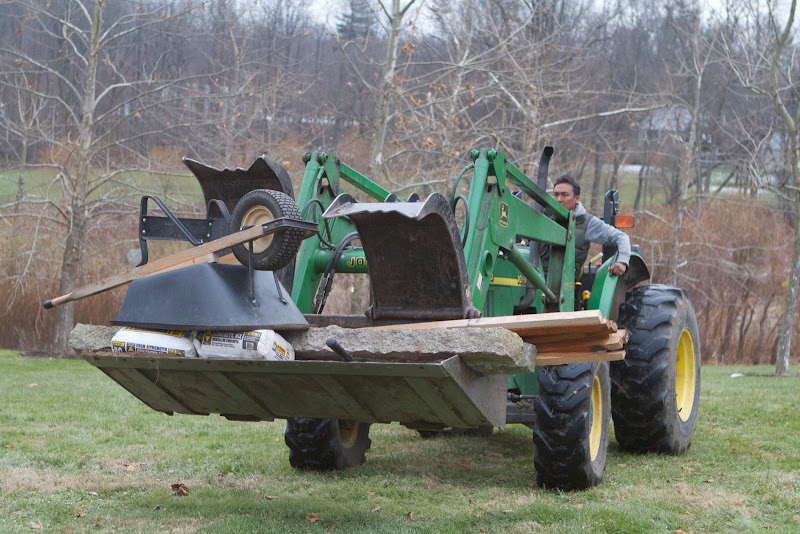

18 Pete loaded the tractor with all of the tools for the job.

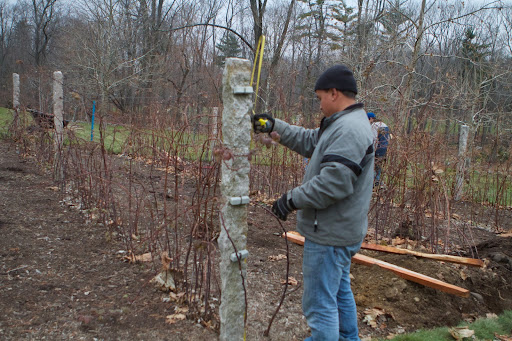

19 Gyurme measured the height of an existing post.

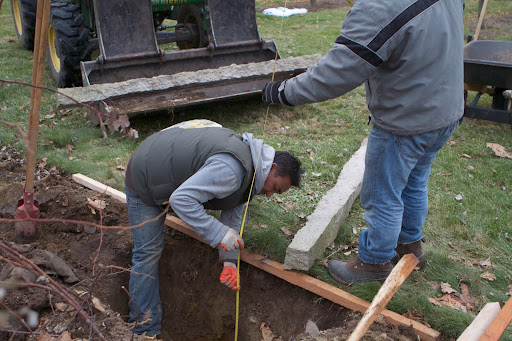

20 They were trying to determine how much deeper the hole needed to be so that the replacement post would match the others.

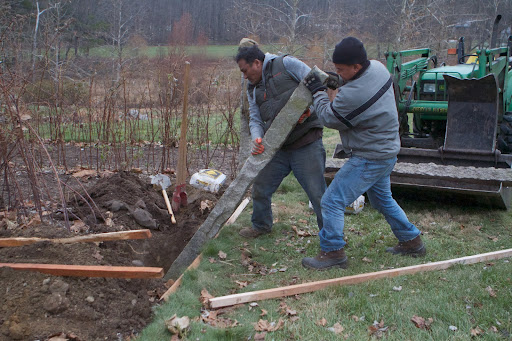

21 Adjustments were made and the granite was lowered into the hole.

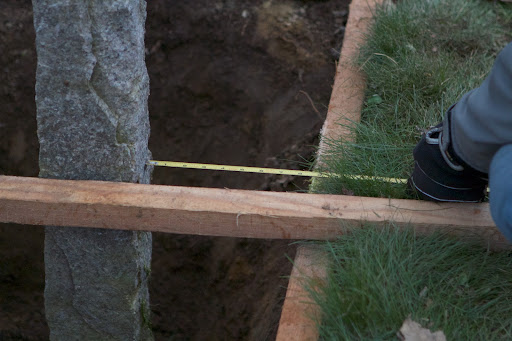

22 More measurements were taken for accurate placement.

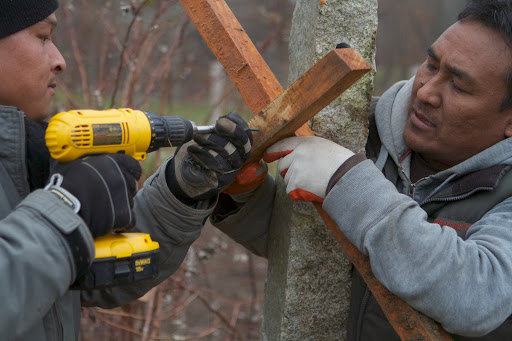

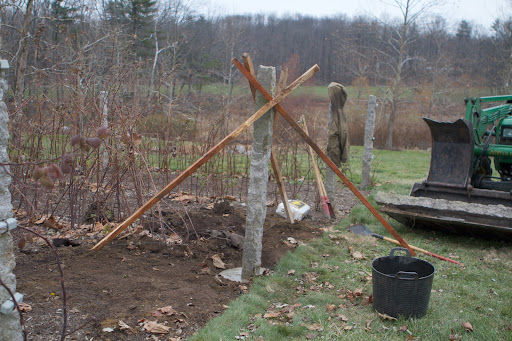

23 A temporary wooden bracing structure was created to hold the post plum.

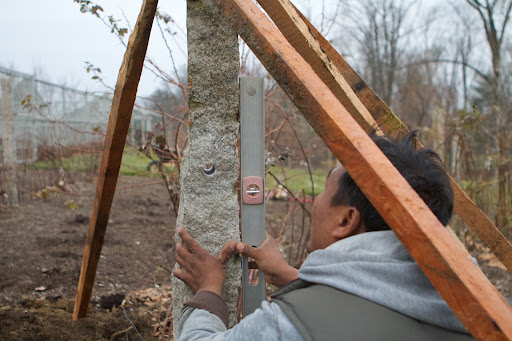

24 More adjustments were made using a level.
25 Soil was shoveled back into the hole to make it less wide.

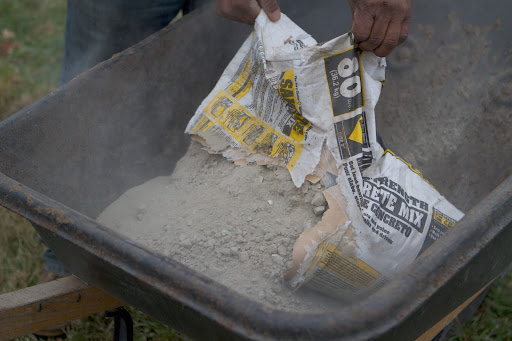

26 The concrete mix was emptied into a wheelbarrow.

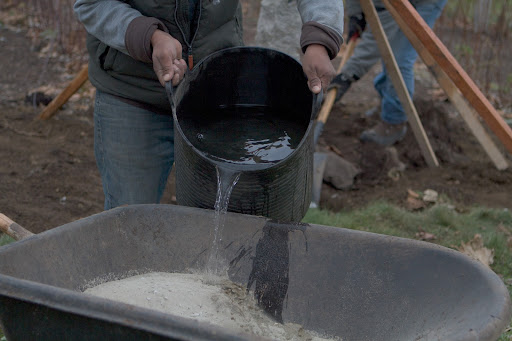

27 Water was added.
28 And mixed thoroughly

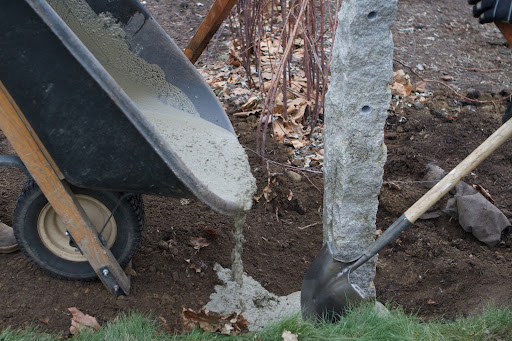

29 The concrete was poured into the hole.
30 When the concrete dries, the wooden bracing will be removed, the holes filled in with soil, and the wire supports replaced. Let's hope that we'll have no more broken granite!
